Detecting Land-Cover Change from Space with AI Embeddings
This canvas does change detection on top of an AI embedding dataset instead of raw satellite imagery — and because every pixel is already a 64-dimensional vector, the detection itself is just a cosine distance between this year's vector and last year's. No image-processing code, no imagery to download, no infrastructure to stand up: the whole thing is a handful of serverless UDFs that read only the two years you asked for. Draw a box anywhere on Earth, pick a year, and three synchronized maps show you the landscape, its structure, and where things changed.
Try it out
The canvas uses public data so it runs out-of-the-box. If you want to tweak the UDFs — adjust the color stretch, add a threshold mask, export the change layer — fork it first: open the Canvas → ⋮ → Make a copy.
What you can do with it
This canvas is useful whenever you need to quickly answer questions like:
- Which fields were harvested or rotated? Bright pixels in the change map appear where the crop cycle shifted year to year.
- Where did new development happen? Roads, buildings, and cleared land all register as high-change areas.
- How stable is this landscape? Dark areas in the change map haven't changed meaningfully in years.
The dataset covers the whole globe from 2017 to 2025, so you can explore any region — not just a pre-selected area.

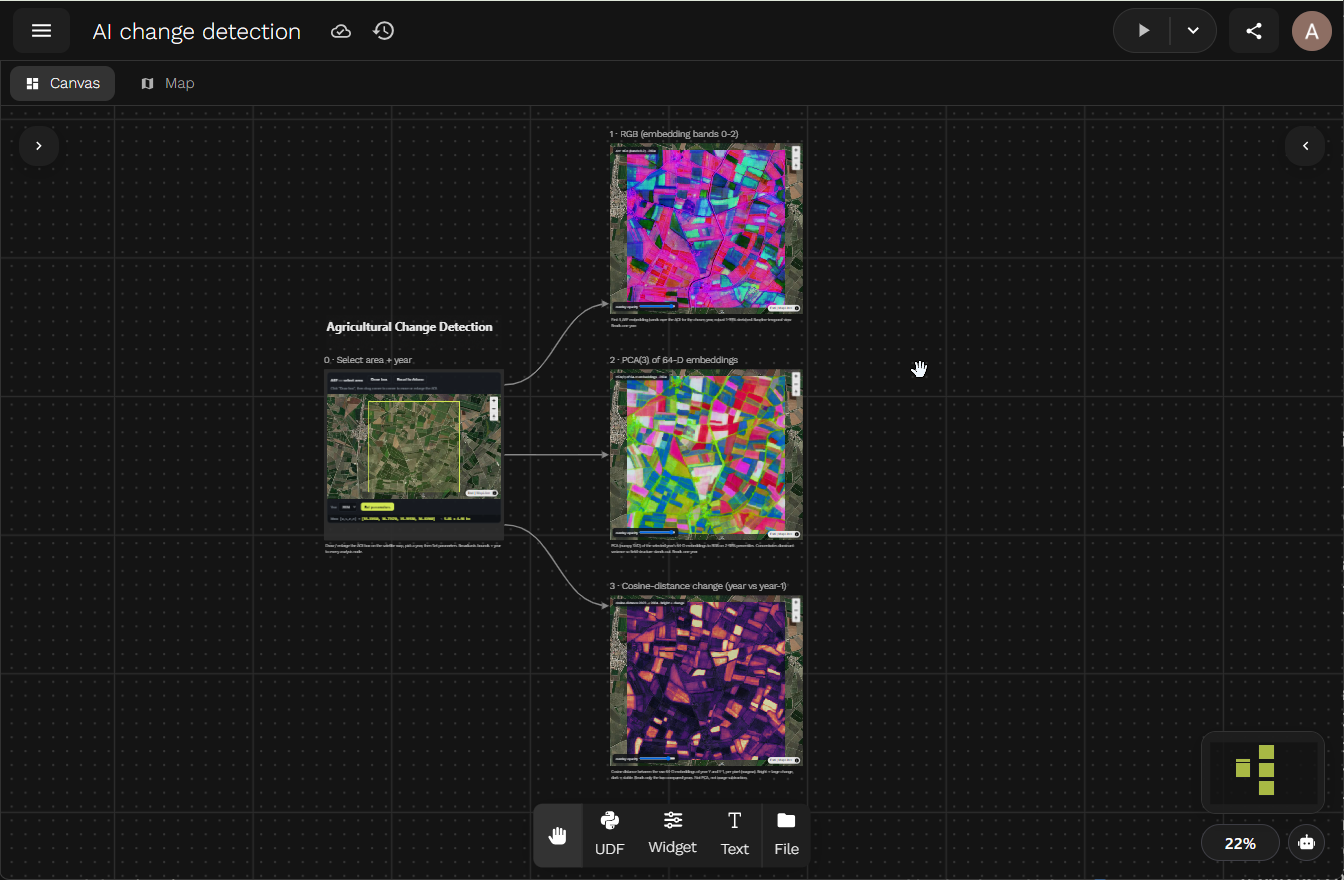

How the canvas is organized
The canvas has one control node that feeds three analysis nodes. Change the AOI or the year in the first node, and all three maps update automatically.
1 · Select area + year
Draw a bounding box on the satellite basemap and pick a year (2017–2025). The widget ships pre-loaded with an AOI over Adana, Turkey — a good starting point because the agricultural fields there show clear seasonal patterns. Click Set parameters to broadcast your selection to the three nodes below.
2 · RGB (embedding bands 0–2)
Renders the first three of the 64 embedding bands as a false-color RGB image for the chosen year. Think of this as a "what does this place look like to the model" view — a baseline to orient yourself before looking at the change map. Bands are stretched on their own 1–99th percentiles so the image is always well-exposed regardless of the area.
3 · PCA of the full embedding
All 64 embedding dimensions are compressed to three using PCA (NumPy SVD on a pixel sample), then mapped to RGB. The dominant variance in the landscape — field boundaries, crop types, bare soil — pops out in this view in ways that raw satellite bands often don't show clearly. Stretched on 2–98th percentiles.
4 · Cosine-distance change map
This is the core of the canvas. For each pixel, it computes the cosine distance between the 64-dimensional embedding vector in year Y and year Y−1. The result is rendered with the magma colormap: bright = large change, dark = stable.
The key thing is that it compares embedding vectors, not raw pixel brightness. That means it picks up semantic change — a field going from fallow to irrigated crops — rather than lighting differences between two satellite passes. Only the two years being compared are read from the store, so queries stay fast.
About the data
The canvas reads from the AlphaEarth Foundations (AEF) mosaic published by Taylor Geospatial Labs on Source Cooperative. The store is a public, anonymous GeoZarr — no credentials needed.
| Property | Value |
|---|---|
| Dataset | AlphaEarth Foundations (AEF) embedding mosaic |
| Publisher | Taylor Geospatial Labs via Source Cooperative |
| Format | GeoZarr v3, EPSG:4326, int8 |
| Coverage | Global |
| Years available | 2017–2025 |
| Embedding size | 64 dimensions per pixel |
