Building a Climate dashboard

We're going to build an interactive dashboard of global temperature data, after processing 1TB of data in a few minutes!

Install fused

pip install "fused[all]"

Read more about installing Fused here.

Authenticate in Fused

In a notebook:

from fused.api import NotebookCredentials

credentials = NotebookCredentials()
print(credentials.url)

Follow the link to authenticate.

Read more about authenticating in Fused.

Processing 1 month

ERA5 global weather data was ingested using Fused ingestion pipeline.

import fused

DuckDB

@fused.udf
def udf(
    month: str = "2024-01",
):
    import duckdb
    result = duckdb.sql(f"""
      SELECT
          datestr::VARCHAR as datestr,
          ROUND(AVG(daily_mean), 2) as daily_mean_temp
      FROM 's3://fused-asset/data/era5/t2m/datestr={month}-*/*.parquet'
      GROUP BY datestr
      ORDER BY datestr
    """).df()

    output_fp = fused.file_path(f"monthly_climate/{month}.pq")
    result.to_parquet(output_fp)

    return result

Pandas

NOTE: pandas approach is a bit slower than DuckDB.

@fused.udf
def udf(month: str = "2024-01",):
    import pandas as pd

    files = fused.api.list(f"s3://fused-asset/data/era5/t2m/datestr={month}-")

    dfs = [pd.read_parquet(file, columns=['daily_mean']).assign(datestr=file.split('datestr=')[1].split('/')[0]) for file in files]
    result = pd.concat(dfs).groupby('datestr')['daily_mean'].mean().round(2).reset_index()

    output_fp = fused.file_path(f"monthly_climate/{month}.pq")
    result.to_parquet(output_fp)

    return result

fused.run(udf)

>>>   datestr     daily_mean_temp
3  2024-01-04            277.36
4  2024-01-05            277.26
5  2024-01-06            277.17

20 years of data (1TB in < 1min!)

Explore the available data for yourself in File Explorer

We'll process 20 years of data:

data_until = 2005

available_days = fused.api.list('s3://fused-asset/data/era5/t2m/')
recent_months = list(set([
   path.split('datestr=')[1][:7] for path in available_days
   if int(path.split('datestr=')[1][:4]) >= data_until
]))

This corresponds to ~1TB of data!

Size of data quick calculation

Each file being about 140MB a quick back of the envelope calculation gives us:

recent_days = [day for day in available_days if day.split('datestr=')[1][:7] in recent_months]
len(recent_days) * 140 / 1000 # size in GB of files we'll process

1005.62

Fused allows us to run a UDF in parallel. So we'll process 1 month of data across hundreds of jobs:

results = fused.submit(
  udf,
  recent_months,
  max_workers=250,
  collect=False
)

See a progress bar of jobs running:

results.wait()

See how long all the jobs took:

results.total_time()

>>> datetime.timedelta(seconds=40, ...)

We just processed 20 years of worldwide global data, over 1TB in 40s!!

All we need to do now is aggregate the data by month:

@fused.udf(cache_max_age='0s')
def udf():
    import duckdb

    monthlys = fused.api.list(fused.file_path(f"monthly_climate/"))
    file_list = "', '".join(monthlys)

    result = duckdb.sql(f"""
       SELECT
           LEFT(datestr, 7) as month,
           ROUND(AVG(daily_mean_temp), 2) as monthly_mean_temp
       FROM read_parquet(['{file_list}'])
       GROUP BY month
       ORDER BY month
    """).df()

    return result

Instead of running this locally, we'll open it in Workbench, Fused's web-based IDE:

# Save to Fused
udf.to_fused("monthly_mean_temp")

# Load again to get the Workbench URL
loaded_udf = fused.load("monthly_mean_temp")

Return loaded_udf in a notebook and you'll get a URL that takes you to Workbench:

loaded_udf

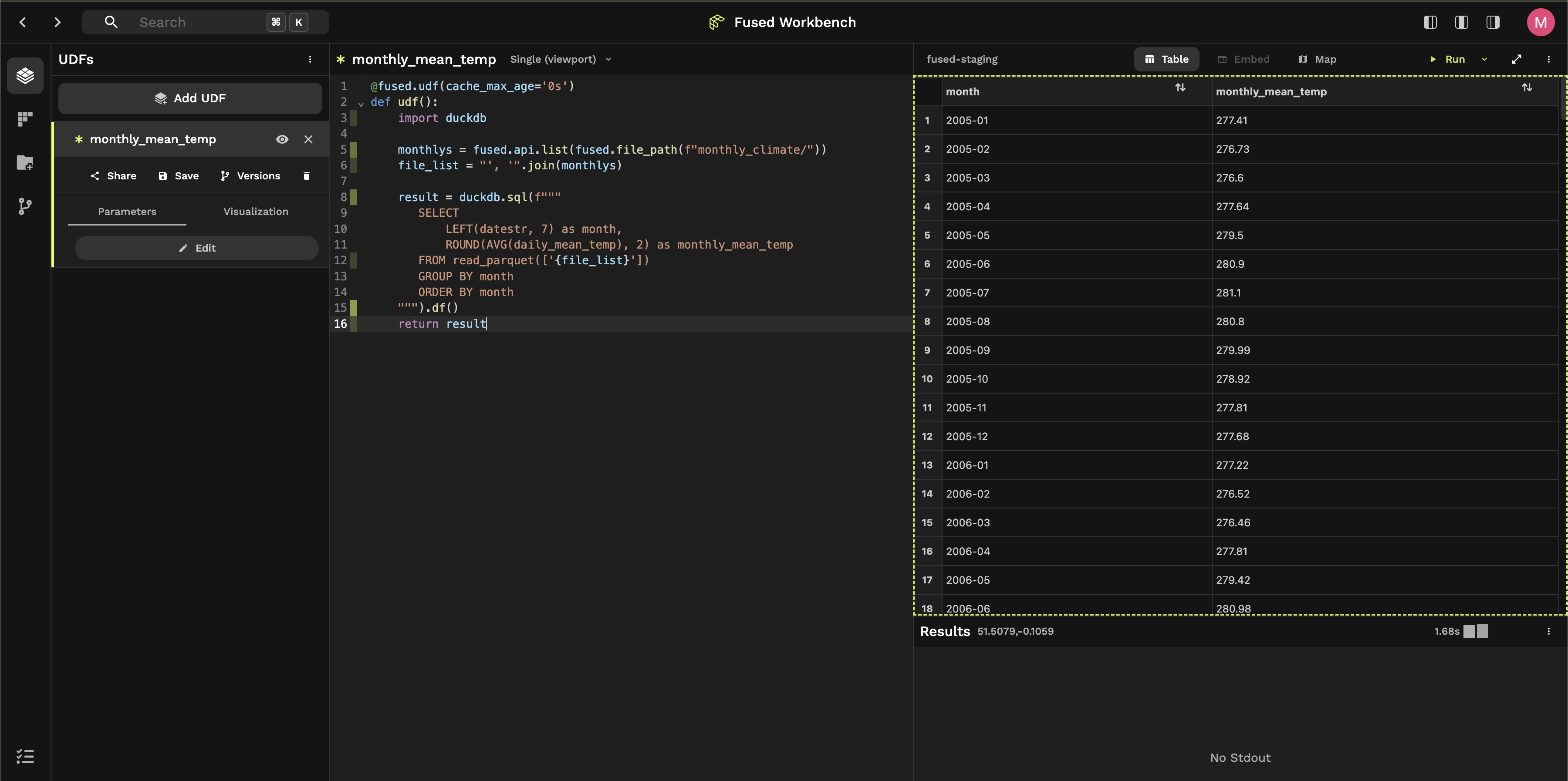

Click on the link to open the UDF in Workbench. Click "+ Add to UDF Builder"

Interactive graph (with AI)

You can use the AI Assistant to help you vibe code an interactive timeseries of your data

Simply ask the AI:

Make an interactive graph of the monthly temperature data

You can then share your graph:

• Save your UDF (Cmd + S / Click Save)
• Click "Share"
• Create Shared token by clicking "Share"
• Click on link

Any time you make an update, your graph will automatically update!
